The long-awaited new machine, born from our focus on the needs for the 26-dia. Class.

Max.machining diameter
Tool Post
Max.headstock stroke

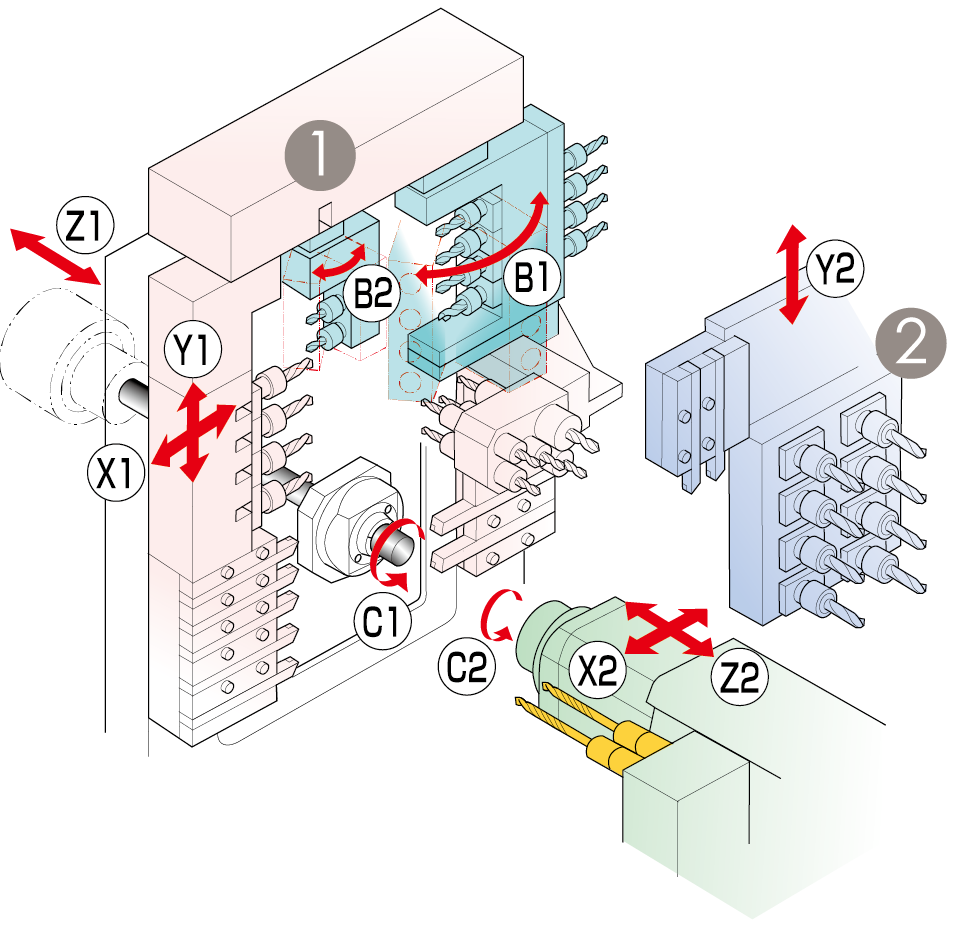

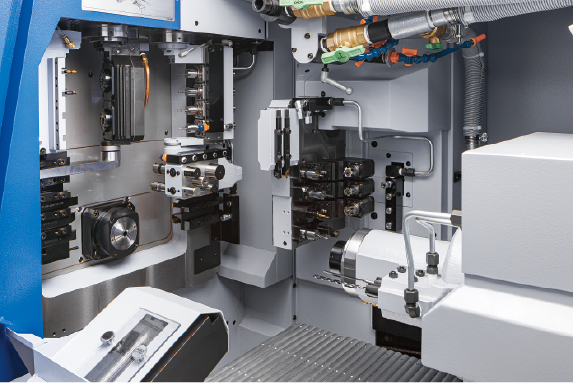

Tool Post Tooling
①
Turning tool 7 tools
Frong-end working tool 7 tools
Rear-end working tool 5 tools
Power-driven tool 4 Pos.
Cartridge type with B axis control 1 Pos.
Power-driven tool with B axis control 1 pos. (Front 4 tools + Rear 4 tools)
②
Rear-end working tool 8 tools
Stationar tool max.8 tools
Power-driven tool max.8 tools
Item SD-26 type S
Max.machining diameter ø 26mm (1-1/64in)
Max.headstock stroke Standard 260mm (10-15/64in)
R.M.G.B.unit 223.5mm (8-51/64in)
N.G.B.type max.65mm (2-35/64in)
Number of turning tools 5 tools on the front + 2 tools on the rear
5-spindle
sleeve holder		 Number of tools Front : 5 tools
Rear : 5 tools
Max.drilling capability ø 13mm (33/64in)
Max.tapping capability M12 x P1.75
2-spindle
sleeve holder		 Number of tools 2 tools
Max.drilling capability ø 10mm (5/16in)
Max.depth of hole 100mm (3-15/16in)
Power-driven att. Number of tools Power-driven tool with B-axis : At 1 position(Front 4 tools + Rear 4 tools)
Number of tools Front Cartridge type : At 4 position
Upper Cartridge type : At 1 position
Max.drilling capability Tilting head unit ø 8mm (5/16in)
Front/Upper ø 10mm (25/64in)
Max.tapping capability Tilting head unit M8 x P1.25
Front/Upper M8 x P1.25
Spindle speed max.8,000min-1
Drive motor 2.2kw(Continuous)/ 3.0kw(5min./30%ED)
Rapid feed rate 36m/min(X1,Y1,Z1,X2,Z2)
Main spindle indexing angle C-axis control
Main spindle speed max.10,000min-1
Main spindle motor 5.5kw(Continuous)/ 7.5kw(10min./25%ED)
Dimensions (WxDxH) 2,550 x 1,300 x 1,995mm
Weight 3,600kg
Power consumption 9.9KVA
Item SD-26 type S
Max.chucking diameter ø 26mm (1-1/64in)
Max.length for front ejection 90mm (3-17/32in)
Max.work projection length 40mm (1-9/16in)
8 spindle
backworking unit		 Number of tools 8 tools
Max.drilling capability Stationary tool ø 13mm
Power-driven att. ø 8mm
Max.tapping capability Stationary tool M12 x P1.75
Power-driven att. M6 x P1.0
Sub spindle indexing angle C-axis control
Sub spindle speed max.10,000min-1
Sub spindle motor 3.7kw(Continuous) / 5.5kw(10min./40%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 31i-B5 Plus
  2. 10.4-inch color LCD display
  3. Pneumatic unit
  4. Coolant level detector
  5. Automatic centralized lubrication unit
  6. Door Interlock unit with Locking System
  7. Cs contour control (Main/Sub)
  8. Spindle clamp unit (Main/Sub)
  9. Cooling unit (Main spindle/ Drive unit for gang tool post)
  10. Revolving guide bush unit
  11. Drive unit for revolving guide bush
  12. Air purge unit for revolving guide bush
  13. Main/Sub collet sleeve
  14. Gang-type 5 station tool holder 16 mm Gang-type 5 station tool holder 16 mm
  15. 4 Spindle cross drilling unit cartridge
  16. 4 Spindle opposing unit with B axis control function
  17. Second B-axis unit clamp unit
  18. 5 spindle sleeve holder
  19. 2 spindle sleeve holder
  20. Broken cut-off tool detector
  21. Back attachment
  22. 8 spindle back working unit with Y axis control function
  23. Drive unit for 8 spindle back working unit
  24. Parts separator
  25. Parts conveyor
  26. Sub spindle air purge unit
  27. Coolant pump 400W ver. (Main/Sub)
  28. Work light
  29. Earth leakage breaker

Optional Accessories and Functions

  1. Gang-type tool holder Coolant thru (5 station/2 station)
  2. Non-Guide Bush Version
  3. Revolving magic guide bush unit
  4. Coolant flow detector
  5. Coolant flow detector interface
  6. Coolant pump with de-aeration function
  7. Coolant chiller
  8. Water separator
  9. Beacon
  10. Beacon interface
  11. Parts ejector with Spring
  12. Parts ejection detector
  13. Parts ejector with air cylinder
  14. Parts separator unit long parts ver.
  15. Parts ejector with guide tube
  16. Parts stopper unit
  17. Coolant unit (6.9MPa/2.5MPa/0.7MPa)
  18. Coolant unit signal cable 46 contacts Ver.
  19. Coolant unit power cable
  20. Coolant valve
  21. Coolant piping
  22. Expanded I/O module unit
  23. Terminal base
  24. Reducing valve
  25. Main spindle inner tube
  26. Steady rest for feed rod
  27. Automatic bar feeder interface
  28. Steady rest unit cover
  29. Safety cover
  30. LAN/RS232C interface
  31. Transformer
  32. Transformer CE marking version 20kVA
  33. CE/UKCA marking version
