High-spec and Compactness
A New Generation Machine Specialized in Small Diameter Processing From Star Micronics

Max.machining diameter
Tool Post
Max.headstock stroke

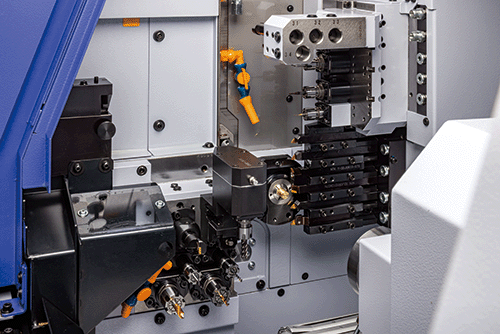

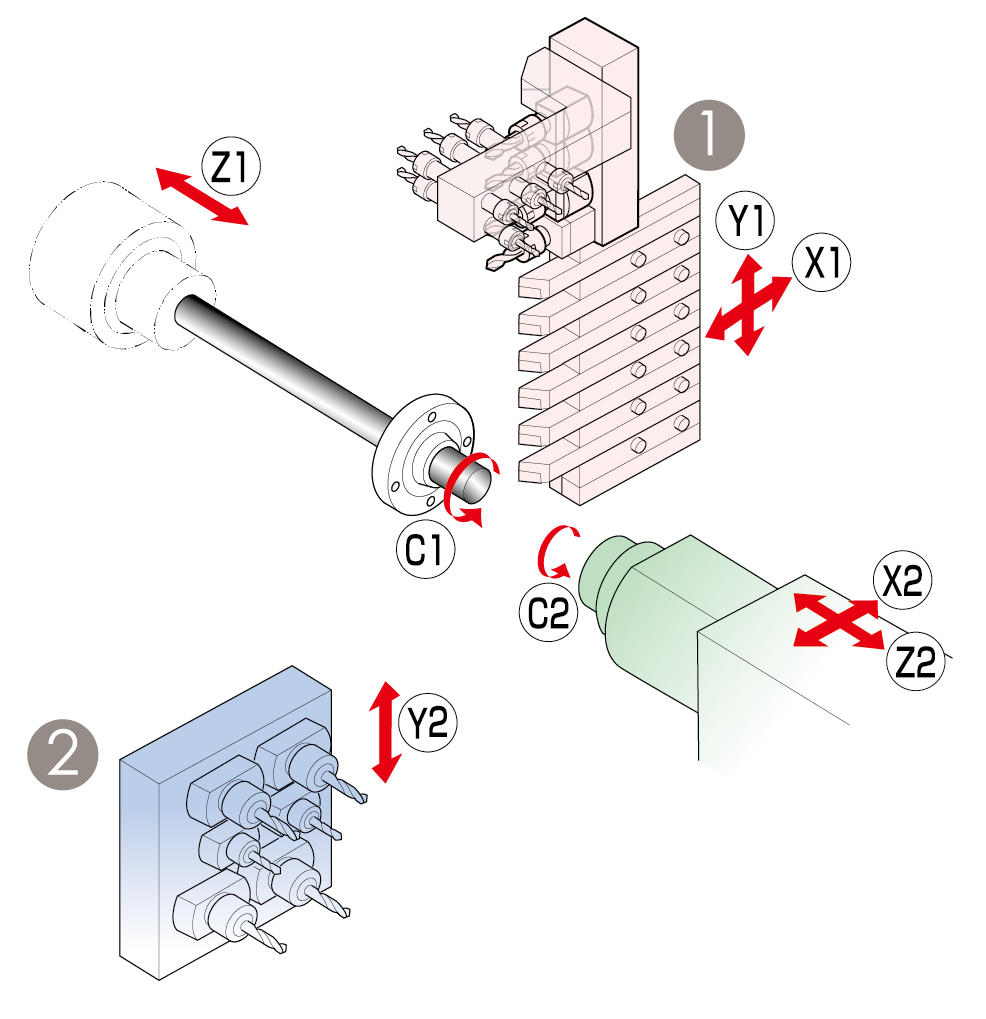

Tool Post Tooling
①
Turning tool 6 tools
Frong-end working tool 4 tools or 6 tools
Rear-end working tool 4 tools or 6 tools
Power-driven tool 1 tool
Cartridge type 4 Pos.
②
Rear-end working tool 6 tools
Stationar tool max.6 tools
Power-driven tool max.4 tools
Item SL-7/10
Max.machining diameter ø 10mm (25/64in)
Max.headstock stroke Stationary G.B. 135mm (5-5/16in)
Revolving G.B. 105 (4-9/64in)
R.M.G.B.unit 75mm (2-61/64in)
Number of turning tools 6 tools
sleeve holder 4-spindle type Front : 4 tools
Rear : 4 tools
6-spindle type Front : 6 tools
Rear : 6 tools
Max.drilling capability ø 6mm (15/64in)
Max.tapping capability M5 x P0.8
Power-driven att. Number of tools Cross milling : 1 tool
Cartridge type : At 4 position
Max.drilling capability ø 5mm (15/64in)
Max.tapping capability M4 x P0.7
Spindle speed max.12,000min-1
Drive motor 1.0kw(Continuous) / 1.2kw(5min./30%ED)
Rapid feed rate 35m/min(X1,Y1,Z1,X2,Z2)
15m/min(Y2)
Main spindle indexing angle C-axis control
Main spindle speed Stationary G.B. max.18,000min-1
Revolving G.B. max.15,000min-1
Main spindle motor 3.7kw(Continuous) / 5.5kw(10min./25%ED)
Dimensions (WxDxH) 1,865 x 795 x 1,815mm
Weight 1,600kg
Power consumption 3.8KVA
Item SL-7/10
Max.chucking diameter ø 10mm (25/64in)
Max.length for front ejection 70mm (2-3/4in)
Max.work projection length 20mm (25/32in)
6spindle
backworking unit		 Number of tools 6 tools
Max.drilling capability Stationary tool ø 6mm (15/64in)
Power-driven att. ø 5mm (3/16in)
Max.tapping capability Stationary tool M5 x P0.8
Power-driven att. M4 x P0.7
Sub spindle indexing angle C-axis control
Sub spindle speed max.12,000min-1
Sub spindle motor 0.55kw(Continuous) / 1.1kw(15min./40%ED)

Standard Accessories and Functions

  1. CNC unit FANUC 32i-B
  2. Operation panel 10.4-inch color LCD display
  3. Pneumatic unit
  4. Coolant level detector
  5. Automatic centralized lubrication unit
  6. Door interlock system
  7. Cs contouring control (Main / Sub)
  8. Spindle clamp unit (Main / Sub)
  9. Revolving guide bush unit
  10. Drive unit for revolving guide bush
  11. Air purge for revolving guide bush
  12. Main / Sub collet
  13. 6-station tool holder (8 mm or 110 mm)
  14. 4-spindle sleeve holder
  15. 5-spindle cross drilling unit
  16. Broken cutoff tool detector
  17. Backworking attachment
  18. Back 6-spindle unit
  19. Drive unit for power-driven (6-spindle backworking unit)
  20. Sub spindle air purge unit
  21. Sub spindle air blow unit
  22. Parts ejection detector
  23. Work light
  24. Leakage breaker

Optional Accessories and Functions

  1. Manual pulse generator
  2. Coolant flow detector
  3. Check valve
  4. Parts conveyor
  5. Parts receptacle in Machine
  6. Oil pan cover
  7. Water separator
  8. Oil mist filter
  9. Beacon
  10. Main spindle inner tube
  11. Rotary magic guide bush unit
  12. Parts ejector (Spring type)
  13. Parts ejector (Air cylinder type)
  14. Parts ejector with guide tube
  15. Product separator system, A-type
  16. Coolant unit (2.5MPa/0.7MPa)
  17. Coolant unit signal cable
  18. Coolant unit power cable
  19. Coolant valve
  20. Coolant pipings
  21. Coolant pump with defoaming function
  22. 400 W coolant pump
  23. Automatic bar feeder interface
  24. LAN/RS232C interface
  25. Chip conveyor interface
  26. Transformer
  27. Transformer CE marking version
  28. CE/UKCA marking
